  • E-Z Press™ Threaded Insert for Plastic - Reverse Slot - Stainless - Stainless - M8-1.25

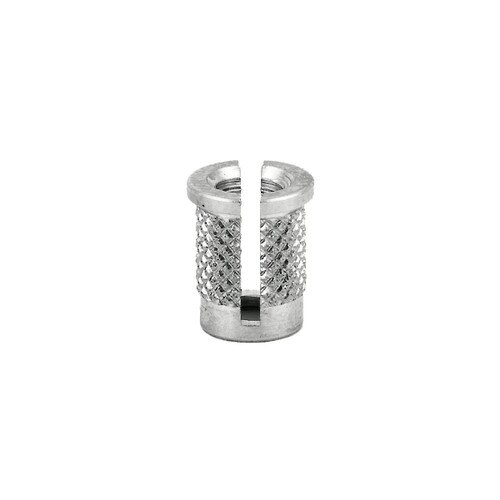

Exact part/packaging not shown. Actual parts and packaging may vary.

E-Z Press™ Threaded Insert for Plastic - Reverse Slot - Stainless - Stainless - M8-1.25

SKU: 260-M8-RS-CR

Overview

E-Z Press™ Threaded Insert for Plastic - Reverse Slot - Stainless - Stainless - M8-1.25

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.

Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.

Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.

Features

  • Install cold with simple press-in installation
  • Stainless steel design for greater strength and corrosion resistance.
  • Cut reject waste caused by misaligned and faulty inserts
  • Eliminate the need to “chase” threads after molding
  • Install properly without a precise hole depth

Applications:

  • Post-molding installation in either thermoset plastics or thermoplastics

Knowledge Base

Specifications

Specifications

E-Z Lok P/N: 260-M8-RS-CR
For Use in: Thermoset Plastic, Thermoplastic
Specific Material Use: N/A
Sub-Category: N/A
Style: Press-In
Material: Steel - Stainless
System of Measurement: Metric
Internal Thread: M8-1.25
External Thread: N/A
Installed Length: 14.3
Drill Size: N/A
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A

Prop 65

Prop 65

WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
