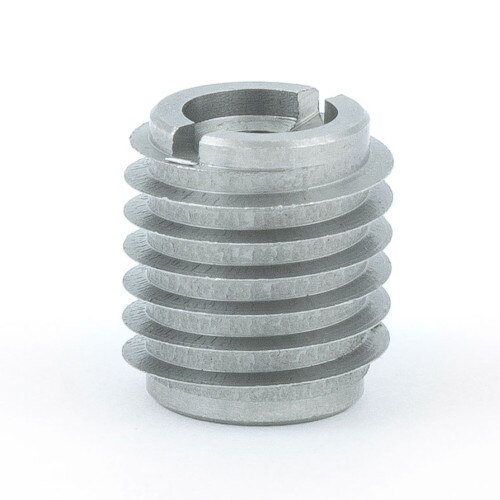

Exact part/packaging not shown. Actual parts and packaging may vary.

E-Z Knife™ Threaded Insert for Hard Wood - Stainless Steel - 1/4-28

SKU: 400-428-CR

Overview

E-Z Knife™ Threaded Insert for Hard Wood - Stainless Steel - 1/4-28

E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.

E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.

Features

  • Superior holding power in hard wood
  • Sizing variety, inch (coarse/fine) & metric
  • Brass or stainless steel options
  • Easily installs with a bolt/jam nut or optional drive tool

Applications:

  • Cabinetry & Furniture
  • Partitions
  • Display Cases
  • Beer Tap Handles
  • Shipping Containers
  • Anywhere a fastener will be used in wood

Installation:

E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.

Specifications

Specifications

E-Z Lok P/N: 400-428-CR
For Use in: Hard Wood
Specific Material Use: N/A
Sub-Category: N/A
Style: Knife Thread
Material: Steel - Stainless
System of Measurement: Inch
Internal Thread: 1/4-28
External Thread: N/A
Installed Length: 0.5
Drill Size: 25/64
Tap Size: N/A
Minimum Full Thread Depth: 0.5
Installation Tool P/N: DT-428
