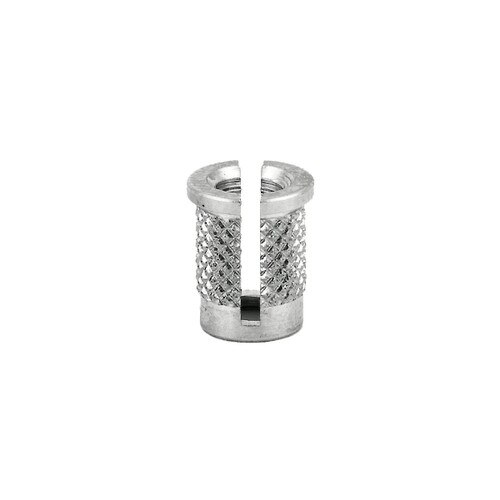

E-Z Press™ Threaded Insert for Plastic - Reverse Slot - Stainless - 10-32
Overview
E-Z Press™ Threaded Insert for Plastic - Reverse Slot - Stainless - 10-32
E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.
Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.
Features
- Install cold with simple press-in installation
- Stainless steel design for greater strength and corrosion resistance.
- Cut reject waste caused by misaligned and faulty inserts
- Eliminate the need to “chase” threads after molding
- Install properly without a precise hole depth
Applications:
- Post-molding installation in either thermoset plastics or thermoplastics
Knowledge Base
Knowledge Base
Specifications
Specifications
| E-Z Lok P/N: | 260-332-RS-CR |
| For Use in: | Thermoset Plastic, Thermoplastic |
| Specific Material Use: | N/A |
| Sub-Category: | N/A |
| Style: | Press-In |
| Material: | Steel - Stainless |
| System of Measurement: | Inch |
| Internal Thread: | 10-32 |
| External Thread: | N/A |
| Installed Length: | 0.375 |
| Drill Size: | 1/4 |
| Tap Size: | N/A |
| Minimum Full Thread Depth: | N/A |
| Installation Tool P/N: | N/A |
