  • E-Z Sonic™ Threaded Insert for Plastic - Tapered - Single Vane - M5-0.8

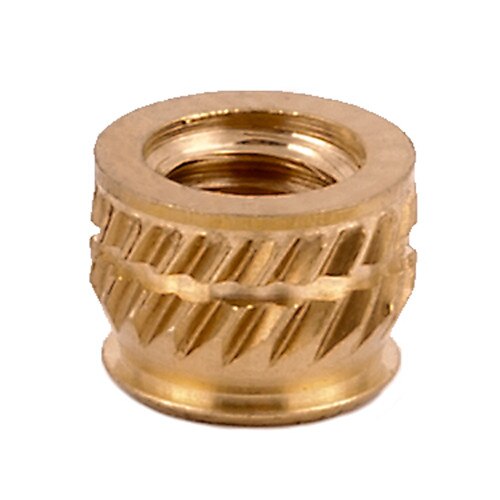

Exact part/packaging not shown. Actual parts and packaging may vary.

E-Z Sonic™ Threaded Insert for Plastic - Tapered - Single Vane - M5-0.8

SKU: TH-M50-SV

Overview

E-Z Sonic™ Threaded Insert for Plastic - Tapered - Single Vane - M5-0.8

E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.

Features

  • Tapered and straight designs
  • Install ultrasonically or with heat driver
  • Superior torque and pull-out resistance
  • Inch or metric threads
  • Tapered design in single and double vane
  • Straight design in flush or flanged configuration

Applications:

  • Post-molding installation in thermoplastic materials

Installation:

Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.

Specifications

Specifications

E-Z Lok P/N: TH-M50-SV
For Use in: Thermoplastic
Specific Material Use: N/A
Sub-Category: N/A
Style: Ultrasonic
Material: Brass
System of Measurement: Metric
Internal Thread: M5-0.8
External Thread: N/A
Installed Length: 7
Drill Size: See Dimensional Dwg
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: HST-332

CAD Drawings

CAD Drawings

Knowledge Base

Knowledge Base

Prop 65

Prop 65

SHOPPERS IN CALIFORNIA, PLEASE NOTE:

WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
