How to Install E-Z Sonic™ Threaded Inserts for Thermoplastic
When it comes to installing threaded inserts into plastic and wood, E-Z LOK's high-quality E-Z Sonic™ (Ultrasonic) Threaded Inserts for Thermoplastic are some of best components to get the job done right the first time. Once installed, these cutting-edge inserts by E-Z LOK provide an easy to install, light-duty solution for enhancing thread strength.

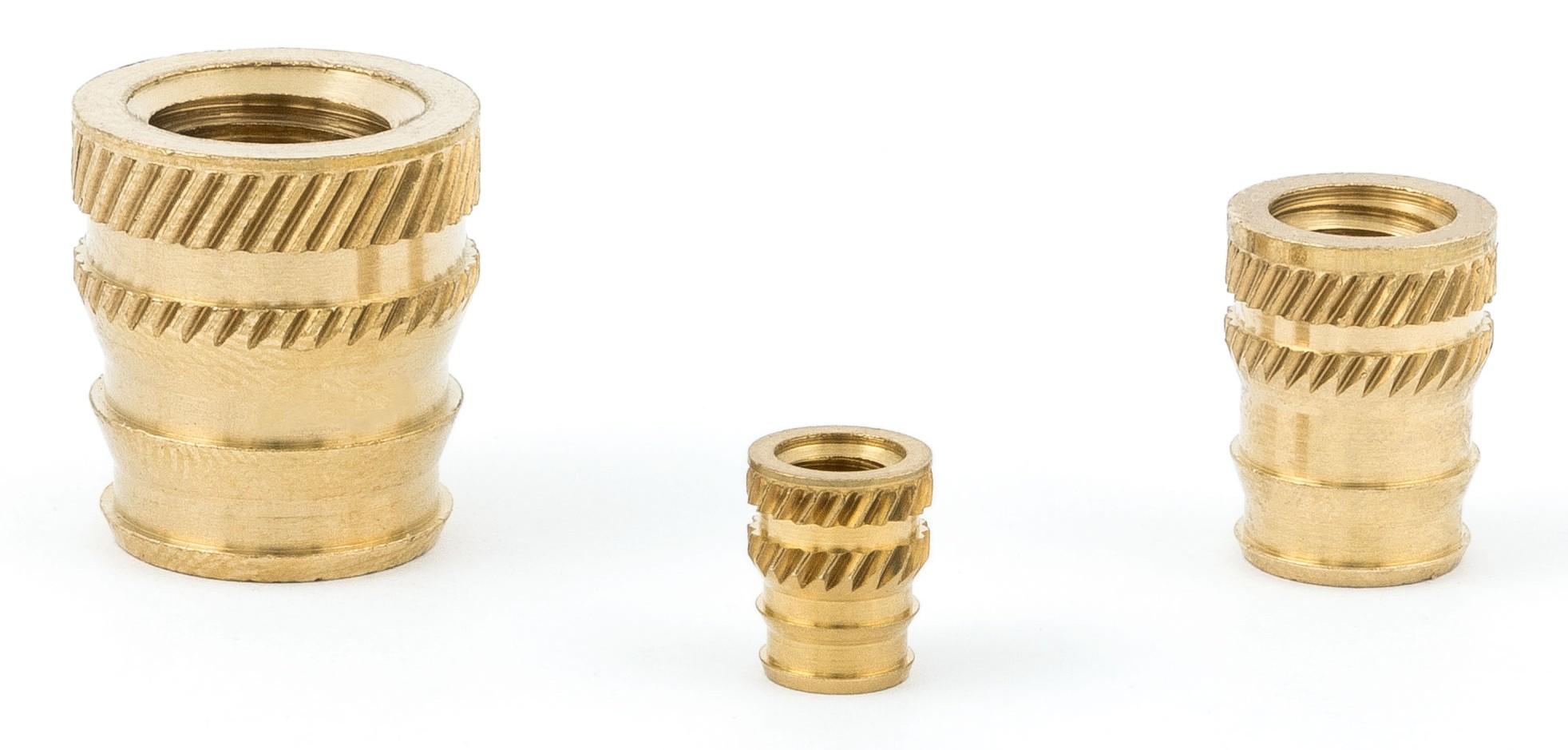

E-Z Sonic™ heat set inserts are designed for post-molding installation in thermoplastic materials. Machined out of high-quality brass and available with both inch and metric threads, our heat set threaded inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
How to Install E-Z Sonic™ Threaded Inserts
The most common methods for installing inserts into thermoplastic – which can be remelted a number of times – are ultrasonic insertion or heat staking. In both methods, the plastic around the insert is melted during installation. The melted plastic flows into the knurls and undercuts of the inserts and then becomes solid again once cooled. This secures the insert in place.
In ultrasonic installation, an ultrasonic horn puts slight downward pressure on the insert while generating high frequency vibrations. Because the insert is in contact with the hole wall, the vibrations generate enough heat to melt the plastic around the insert.
For heat stake installation, a metal tip transfers heat to the insert which melts the hole wall. As with the ultrasonic installation, this melted plastic flows into the outside diameter features of the insert and secures the insert in place once cooled.
With either installation process, it is important to make sure enough of the plastic is being melted. We recommend testing your installation process on scrap material to create the optimum installation process for your application.
Installation Equipment
E-Z LOK does not manufacture or sell installation equipment for ultrasonic threaded inserts. We recommend contacting these manufacturers to discuss your particular requirement to have threaded inserts installed ultrasonically:
www.sonicsandmaterials.com
www.sonitek.com
www.ultrasonicseal.com
Seclecting the Right Drill Hole Size
Selecting the correct hole size is critical for the best fit. Use our handy Drill and Tap (Hole Size) Charts:
Drill and Tap (Hole Size) ChartsFAQ About Installing Threaded Inserts
If you still have questions about installing threaded inserts, we're happy to help clear up any confusion. We want each of our customers to feel confident with their purchase, so make sure you contact us if you still don't know how to install E-Z LOK inserts. We also included one of our most frequently asked questions below to provide further clarification on information pertaining to our E-Z Fin™ Threaded Inserts.
Purchase E-Z Sonic™ Threaded Inserts
Ready to see the difference that E-Z Sonic™ Threaded Inserts inserts can make on your project? Take a look at our selection of top-quality Standard fasteners to find the right-sized parts for your specific applications. Then, locate your nearest distributor to place your order and get back to work quickly!
