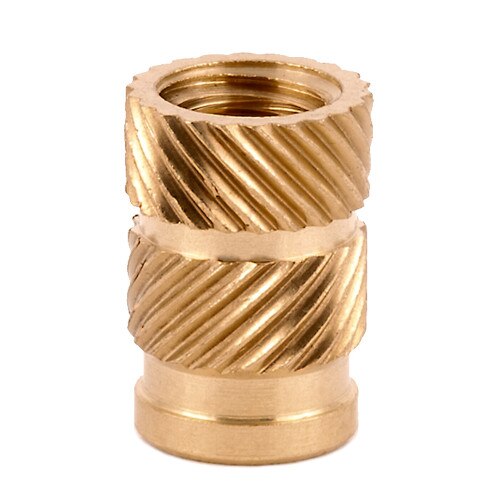

Exact part/packaging not shown. Actual parts and packaging may vary.
E-Z Sonic™ Threaded Insert for Plastic - Straight - Flush - 1/4-28
SKU: HI-428-WH
Overview
E-Z Sonic™ Threaded Insert for Plastic - Straight - Flush - 1/4-28
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
- Tapered and straight designs
- Install ultrasonically or with heat driver
- Superior torque and pull-out resistance
- Inch or metric threads
- Tapered design in single and double vane
- Straight design in flush or flanged configuration
Applications:
- Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.Specifications
Specifications
| E-Z Lok P/N: | HI-428-WH |
| For Use in: | Thermoplastic |
| Specific Material Use: | N/A |
| Sub-Category: | N/A |
| Style: | Ultrasonic |
| Material: | Brass |
| System of Measurement: | Inch |
| Internal Thread: | 1/4-28 |
| External Thread: | N/A |
| Installed Length: | 0.5 |
| Drill Size: | .315 |
| Tap Size: | N/A |
| Minimum Full Thread Depth: | N/A |
| Installation Tool P/N: | HST-4 |
