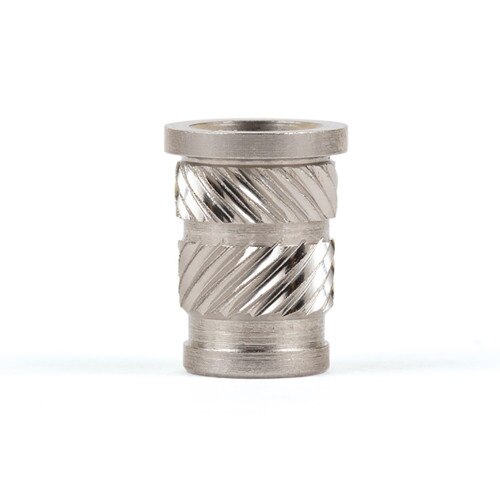

E-Z Sonic™ Threaded Insert for Plastic - Straight - Flanged - Stainless - 3/8-16
SKU: FL-316-HI-CR
Overview
E-Z Sonic™ Threaded Insert for Plastic - Straight - Flanged - Stainless - 3/8-16
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
- Tapered and straight designs
- Install ultrasonically or with heat driver
- Stainless steel design for greater strength and corrosion resistance.
- Inch or metric threads
- Tapered design in single and double vane
- Straight design in flush or flanged configuration
Applications:
- Post-molding installation in thermoplastic materials
Knowledge Base
Knowledge Base
Specifications
Specifications
E-Z Lok P/N: | FL-316-HI-CR |
For Use in: | Thermoplastic |
Specific Material Use: | N/A |
Sub-Category: | N/A |
Style: | Ultrasonic |
Material: | Steel - Stainless |
System of Measurement: | Inch |
Internal Thread: | 3/8-16 |
External Thread: | N/A |
Installed Length: | 0.563 |
Drill Size: | N/A |
Tap Size: | N/A |
Minimum Full Thread Depth: | N/A |
Installation Tool P/N: | N/A |
Prop 65
Prop 65
WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
