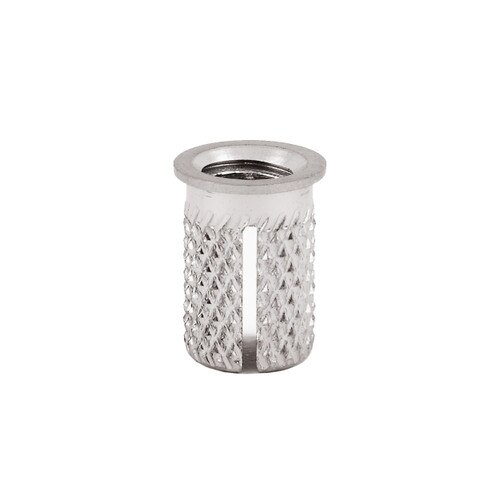

E-Z Press™ Threaded Insert for Plastic - Flanged - 303 Stainless - M6-1.0

SKU: 260-M6-CR
Exact part/packaging not shown. Actual parts and packaging may vary.
5 - 999$1.523
1000 - 4999$1.447
5000 - 9999$1.371
10000 - 24999$1.295
25000 - 49999$1.218
50000 - 99999$1.142
100000 +$1.066


E-Z Press™ Threaded Insert for Plastic - Flanged - Stainless - M6-1.0

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.

Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.


  • Install cold
  • Reduce the cost of moldings
  • Cut reject waste caused by misaligned and faulty inserts
  • Eliminate the need to “chase” threads after molding
  • Install properly without a precise hole depth


  • Post-molding installation in either thermoset plastics or thermoplastics


As the E-Z Pressâ„¢ insert is installed, it compresses slightly along the slot. As the fastener is threaded into place, the insert expands and the diamond knurl is pressed into the wall of the hole, securing the insert in place.

Knowledge Base

Knowledge Base



E-Z Lok P/N: 260-M6-CR
For Use in: Thermoset Plastic, Thermoplastic
Specific Material Use: N/A
Sub-Category: N/A
Style: Press-In
Material: Steel - Stainless
System of Measurement: Metric
Internal Thread: M6-1.0
External Thread: N/A
Installed Length: 0.5
Drill Size: 5/16
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A

Prop 65

Prop 65


WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
