  • E-Z LOK™ Thread Repair Kit for Metal - Thin Wall - 7/16-14 x 9/16-12

E-Z LOK™ Thread Repair Kit for Metal - Thin Wall - 7/16-14 x 9/16-12

SKU: EZ-310-7

E-Z LOK™ Thread Repair Kit for Metal - Thin Wall - 7/16-14 x 9/16-12

Everything needed to repair or reinforce tapped holes in metal in a convenient, easy-to-order kit.

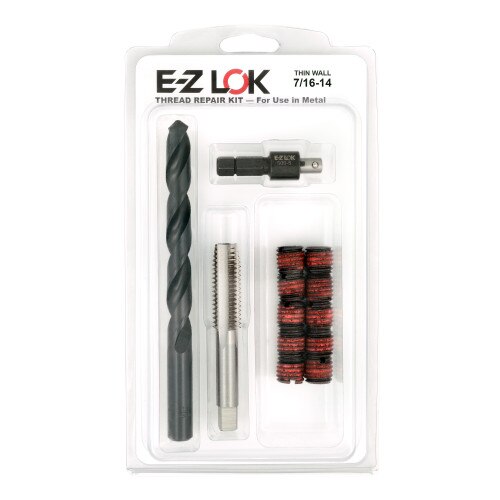

Standard kits include threaded inserts, drill, tap and drive-tool.

Features

  • Ideal for soft metals, like aluminum, cast iron, and magnesium
  • Easy to use solution for repairing or reinforcing tapped holes in metal.
  • Everything needed for installation in a convenient kit
  • Ideal for soft metals, like aluminum, cast iron, and magnesium
  • Kit Contains: (10x) 319-7, (1x) 500-6, (1x) A1260, (1x) 570-7

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Installation:

Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.

  • Simply drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.


E-Z LOK™ (Solid Wall) threaded inserts are self-locking and open immediately upon installation. The pre-applied LOCTITE™ on the external threads sets immediately allowing for the newly installed insert to be fastener ready.

E-Z LOK solid wall threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. When using a bolt and jam nuts for installation, the slotted end of the insert can be either up or down.

Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.

View Installation Instructions
