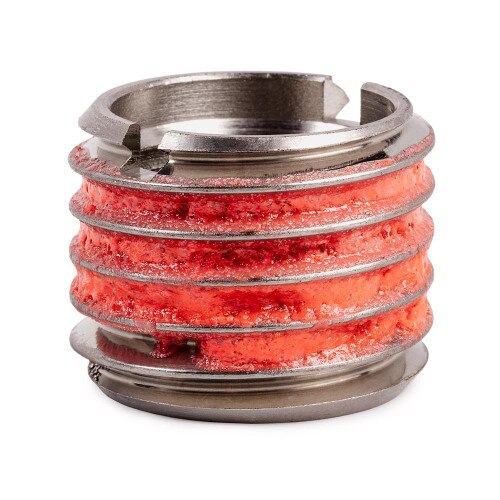

E-Z LOK™ Threaded Insert for Metal - Standard Wall - 303 Stainless - M16-2.0 x 1-8

SKU: 653-16

E-Z LOK™ Threaded Insert for Metal - Standard Wall - 303 Stainless - M16-2.0 x 1-8

STRONG THREADS MADE EASY

All solid construction E-Z LOK threaded inserts install with standard tools. No special drills...no special taps...no special installation tools.

E-Z LOK external threads are standard size and pitch to permit the use of standard drills and taps. E-Z LOKs can be installed with a screwdriver, bolt/jam nut (except IC series), or optional power drive tool.

E-Z LOK external threads are standard size and pitch to permit the use of standard drills and taps. E-Z LOKs can be installed with a screwdriver, bolt/jam nut (except IC series), or optional power drive tool.

E-Z LOKs will not back out or vibrate loose. Immediately upon installation, microencapsulated adhesive begins to set and the newly installed inserts are fastener-ready in 3-5 minutes.

The adhesive seals against liquids and gases to 6,000 psi when fully cured (72 hours).

Features

  • Easy to install: solid threaded inserts install with standard tools, simply drill, tap and thread like any ordinary fastener (no special taps or installation tools are necessary)
  • Strength: carbon steel solid threaded inserts are screw machined out of solid steel for a stronger overall product
  • Standard OD Threads: solid threaded inserts for metal permit the use of standard drills and taps
  • Self-Locking: pre-applied adhesive activates upon installation
  • Vibration Resistant: adhesive secures the carbon steel solid threaded insert into place so it won’t back out
  • Seals against Liquids/Gases: solid threaded inserts are pressurized up to 6,000 psi.

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Specifications

E-Z Lok P/N: 653-16
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Standard Wall
Style: Solid Wall
Material: Steel - Stainless
System of Measurement: Metric
Internal Thread: M16-2.0
External Thread: N/A
Installed Length: 20
Drill Size: 7/8
Tap Size: 1-8
Minimum Full Thread Depth: N/A
Installation Tool P/N: 500-8

Prop 65

SHOPPERS IN CALIFORNIA, PLEASE NOTE:

WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
