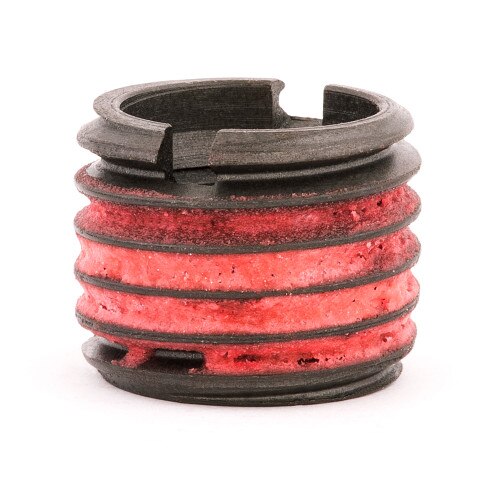

E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 1/2-13 x 7/8-9

SKU: 335-8

E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 1/2-13 x 7/8-9

E-Z LOK™ (Solid Wall) threaded inserts with Extra Heavy Wall are ideal for reducing the size of tapped holes, typically after previous drilling/re-tapping operations. Like all E-Z LOK™ (Solid Wall) threaded inserts, the Extra Heavy Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z LOK™ drive tool.

Features

  • Strong: screw machined out of solid steel for greater strength
  • Easy to Install: simply drill, tap, and thread in like an ordinary fastener
  • Standard OD Threads: permit the use of standard drills and taps
  • Self-Locking: preapplied adhesive activates upon installation
  • Vibration Resistant: adhesive secures the insert in place so it won’t back out
  • Seals against Liquids/Gases: to pressures of 6,000 psi.

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Installation:

Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.



  • Simply drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.




E-Z LOK™ (Solid Wall) threaded inserts are self-locking and open immediately upon installation. The pre-applied LOCTITE™ on the external threads sets immediately allowing for the newly installed insert to be fastener ready.

Specifications

E-Z Lok P/N: 335-8
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Extra Heavy Wall
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Inch
Internal Thread: 1/2-13
External Thread: 7/8-9
Installed Length: 0.69
Drill Size: 49/64
Tap Size: 7/8-9
Minimum Full Thread Depth: 0.813
Installation Tool P/N: Install Tool Not Available
