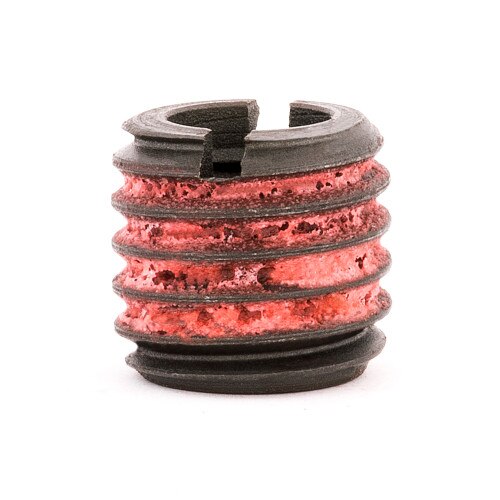

Exact part/packaging not shown. Actual parts and packaging may vary.
E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 5/16-18 x 9/16-12
SKU: 335-5
Overview
E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 5/16-18 x 9/16-12
E-Z LOK™ (Solid Wall) threaded inserts with Extra Heavy Wall are ideal for reducing the size of tapped holes, typically after previous drilling/re-tapping operations. Like all E-Z LOK™ (Solid Wall) threaded inserts, the Extra Heavy Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z LOK™ drive tool.
Features
- Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
- Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
- Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
- Standard size and pitch external threads eliminate need for special taps or installation tools.
- Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool
- Ideal for soft metals, like aluminum, cast iron, and magnesium
Applications:
- Soft metals: aluminum, cast iron, magnesium, etc.
Installation:
Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.- Simply drill the appropriately sized hole with a standard drill
- Tap the hole with a standard tap
- Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.
E-Z LOK™ (Solid Wall) threaded inserts are self-locking and open immediately upon installation. The pre-applied LOCTITE™ on the external threads sets immediately allowing for the newly installed insert to be fastener ready.
E-Z LOK solid wall threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. When using a bolt and jam nuts for installation, the slotted end of the insert can be either up or down.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
View Installation Instructions
Specifications
Specifications
| E-Z Lok P/N: | 335-5 |
| For Use in: | Metal |
| Specific Material Use: | N/A |
| Sub-Category: | Extra Heavy Wall |
| Style: | Solid Wall |
| Material: | Steel - Carbon |
| System of Measurement: | Inch |
| Internal Thread: | 5/16-18 |
| External Thread: | 9/16-12 |
| Installed Length: | 0.52 |
| Drill Size: | 31/64 |
| Tap Size: | 9/16-12 |
| Minimum Full Thread Depth: | 0.594 |
| Installation Tool P/N: | 500-4 |
