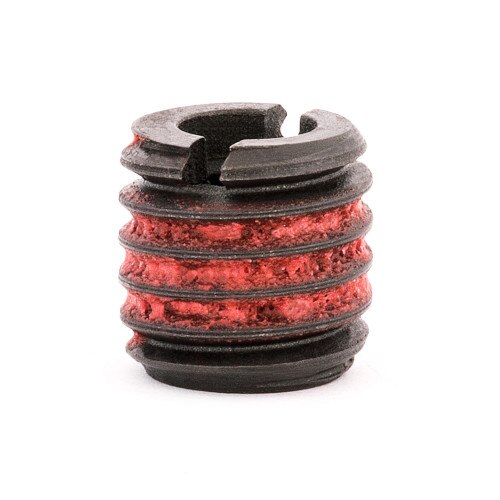

Exact part/packaging not shown. Actual parts and packaging may vary.

E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 1/4-20 x 1/2-13

SKU: 335-4

Overview

E-Z LOK™ Threaded Insert for Metal - Extra Heavy Wall - Carbon Steel - 1/4-20 x 1/2-13

E-Z LOK™ (Solid Wall) threaded inserts with Extra Heavy Wall are ideal for reducing the size of tapped holes, typically after previous drilling/re-tapping operations. Like all E-Z LOK™ (Solid Wall) threaded inserts, the Extra Heavy Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z LOK™ drive tool.

Features

  • Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
  • Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
  • Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
  • Standard size and pitch external threads eliminate need for special taps or installation tools.
  • Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool
  • Ideal for soft metals, like aluminum, cast iron, and magnesium

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Specifications

Specifications

E-Z Lok P/N: 335-4
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Extra Heavy Wall
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Inch
Internal Thread: 1/4-20
External Thread: 1/2-13
Installed Length: N/A
Drill Size: 27/64
Tap Size: 1/2-13
Minimum Full Thread Depth: N/A
Installation Tool P/N: 500-3
