E-Z LOK™ Threaded Insert for Metal - Automotive - Carbon Steel - M18-1.50 (1/2" Reach) x 1-12

SKU: 329-1808

Knowledge Base

E-Z Lok P/N: 329-1808
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Automotive
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Metric
Internal Thread: M18-1.5
External Thread: N/A
Installed Length: 12
Drill Size: 59/64
Tap Size: 1-12
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A

Product Description

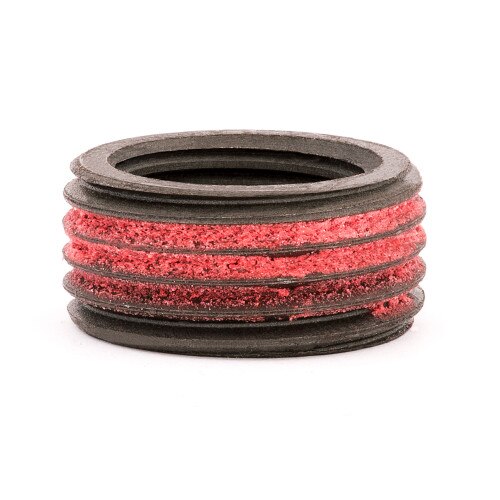

E-Z LOK™ (Solid Wall) Automotive Inserts



These are E-Z LOK™ (Solid Wall) threaded inserts designed for use in spark plug repair. Internal thread sizes from M10 to M18 are available in a variety of lengths. In addition VW Case Savers are offered in through hole and blind designs.



All E-Z LOK™ (Solid Wall) Automotive inserts are installed using standard tools. No special taps or installation tools needed.





Features:

  • Spark plug sizes from M10 to M18
  • VW Case Savers in through hole and blind designs
  • Solid wall construction for greater strength
  • Install with standard tools…no special drill or tap needed
  • Preapplied adhesive on the external threads activates upon installation
  • Self locking – inserts won’t back out
E-Z Lok P/N: 329-1808
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Automotive
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Metric
Internal Thread: M18-1.5
External Thread: N/A
Installed Length: 12
Drill Size: 59/64
Tap Size: 1-12
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A
