E-Z LOK™ Threaded Insert for Metal - Automotive - Carbon Steel - M14-1.25 (1/2" Reach) x 3/4-16

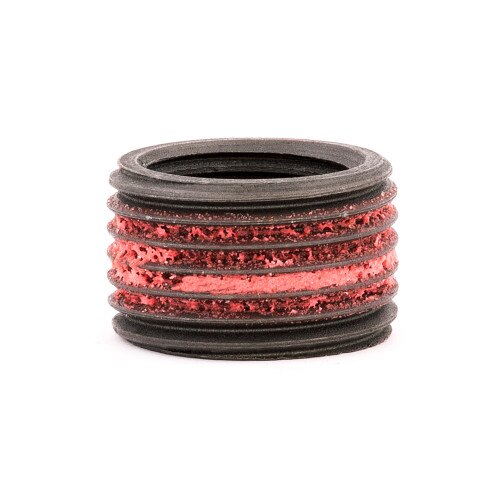

Exact part/packaging not shown. Actual parts and packaging may vary.
E-Z LOK™ Threaded Insert for Metal - Automotive - Carbon Steel - M14-1.25 (1/2" Reach) x 3/4-16
E-Z LOK™ (Solid Wall) Automotive threaded inserts are designed for use in spark plug repair. Internal thread sizes from M10 to M18 are available in a variety of lengths. In addition VW Case Savers are offered in through hole and blind designs.
All E-Z LOK™ (Solid Wall) Automotive inserts are installed using standard tools. No special taps or installation tools needed.
Features
- Spark plug sizes from M10 to M24
- VW Case Savers in through hole and blind designs
- Solid wall construction for greater strength
- Install with standard tools…no special drill or tap needed
- Preapplied adhesive on the external threads activates upon installation
- Self locking – inserts won’t back out
Applications:
- Soft metals: aluminum, cast iron, magnesium, etc.
Installation:
Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.- Simply drill the appropriately sized hole with a standard drill
- Tap the hole with a standard tap
- Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.
E-Z LOK™ (Solid Wall) threaded inserts are self-locking and open immediately upon installation. The pre-applied LOCTITE™ on the external threads sets immediately allowing for the newly installed insert to be fastener ready.
E-Z LOK solid wall threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. When using a bolt and jam nuts for installation, the slotted end of the insert can be either up or down.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
View Installation Instructions
Specifications
| E-Z Lok P/N: | 329-1408 |
| For Use in: | Metal |
| Specific Material Use: | N/A |
| Sub-Category: | Automotive |
| Style: | Solid Wall |
| Material: | Steel - Carbon |
| System of Measurement: | Metric |
| Internal Thread: | M14-1.25 |
| External Thread: | N/A |
| Installed Length: | 12 |
| Drill Size: | 11/16 |
| Tap Size: | 3/4-16 |
| Minimum Full Thread Depth: | N/A |
| Installation Tool P/N: | N/A |
