E-Z LOK™ Threaded Insert for Metal - Automotive - Carbon Steel - M14-1.25 (3/8" Reach) x 3/4-16

SKU: 329-1406

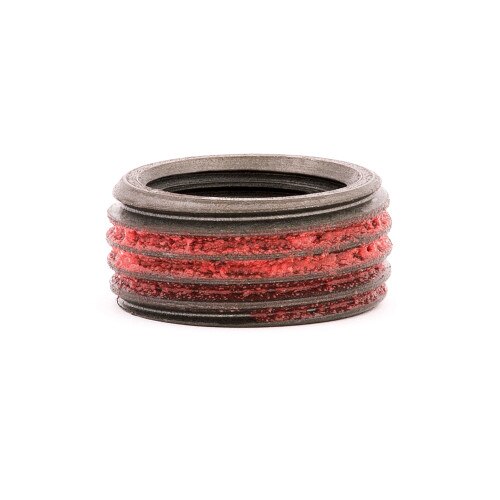

E-Z LOK™ Threaded Insert for Metal - Automotive - Carbon Steel - M14-1.25 (3/8" Reach) x 3/4-16

E-Z LOK™ (Solid Wall) Automotive threaded inserts are designed for use in spark plug repair. Internal thread sizes from M10 to M18 are available in a variety of lengths. In addition VW Case Savers are offered in through hole and blind designs.

All E-Z LOK™ (Solid Wall) Automotive inserts are installed using standard tools. No special taps or installation tools needed.

Features

  • Spark plug sizes from M10 to M18
  • VW Case Savers in through hole and blind designs
  • Solid wall construction for greater strength
  • Install with standard tools…no special drill or tap needed
  • Preapplied adhesive on the external threads activates upon installation
  • Self locking – inserts won’t back out

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Installation:

Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.



  • Simply drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.




E-Z LOK™ (Solid Wall) threaded inserts are self-locking and open immediately upon installation. The pre-applied LOCTITE™ on the external threads sets immediately allowing for the newly installed insert to be fastener ready.

Specifications

E-Z Lok P/N: 329-1406
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Automotive
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Metric
Internal Thread: M14-1.25
External Thread: N/A
Installed Length: 8
Drill Size: 11/16
Tap Size: 3/4-16
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A
