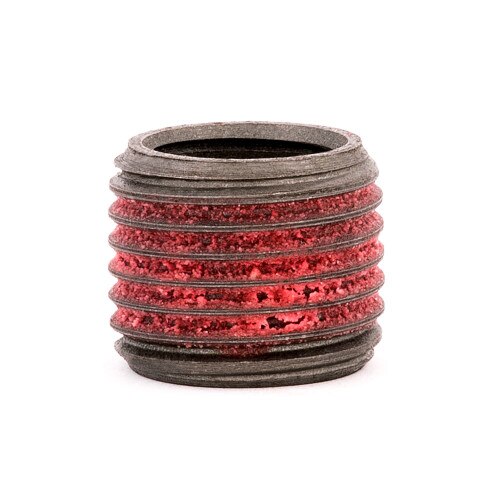

Exact part/packaging not shown. Actual parts and packaging may vary.

E-Z LOK™ Threaded Insert for Metal - Automotive - Carbon Steel - M10-1.0 (1/2" Reach) x 9/16-18

SKU: 329-1008

Overview

E-Z LOK™ Threaded Insert for Metal - Automotive - Carbon Steel - M10-1.0 (1/2" Reach) x 9/16-18

E-Z LOK™ (Solid Wall) Automotive threaded inserts are designed for use in spark plug repair. Internal thread sizes from M10 to M18 are available in a variety of lengths. In addition VW Case Savers are offered in through hole and blind designs.

All E-Z LOK™ (Solid Wall) Automotive inserts are installed using standard tools. No special taps or installation tools needed.

Features

  • Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
  • Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
  • Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
  • Standard size and pitch external threads eliminate need for special taps or installation tools.
  • Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool
  • Ideal for soft metals, like aluminum, cast iron, and magnesium

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Installation:

Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.

  • Simply drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.

E-Z LOK™ (Solid Wall) threaded inserts are self-locking. The pre-applied LOCTITE™ on the external threads activates immediately upon installation. Inserts are fastener ready in 5-10 minutes.


View Installation Instructions

Specifications

Specifications

E-Z Lok P/N: 329-1008
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Automotive
Style: Solid Wall
Material: Steel - Carbon
System of Measurement: Metric
Internal Thread: M10-1.0
External Thread: N/A
Installed Length: 12
Drill Size: 33/64
Tap Size: 9/16-18
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A
