  • E-Z LOK™ Threaded Insert for Metal - Thin Wall - 303 Stainless Steel - M6-1.0 x 3/8-24 x 0.375" OAL

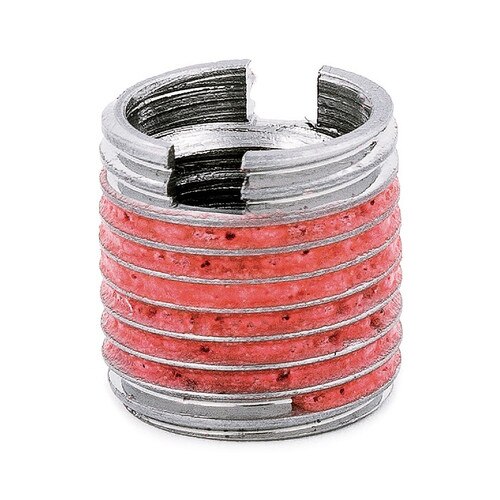

Exact part/packaging not shown. Actual parts and packaging may vary.

E-Z LOK™ Threaded Insert for Metal - Thin Wall - 303 Stainless Steel - M6-1.0 x 3/8-24 x 0.375" OAL

SKU: 313-M6
QuantityPrice
5 - 499$2.000
500 - 999$1.900
1000 - 2499$1.800
2500 - 4999$1.700
5000 - 9999$1.600
10000 - 24999$1.500
25000 +$1.400

Overview

E-Z LOK™ Threaded Insert for Metal - Thin Wall - 303 Stainless Steel - M6-1.0 x 3/8-24 x 0.375" OAL

E-Z LOK™ (Solid Wall) Thin Wall inserts offer the advantages of E-Z LOK™ (Solid Wall) Standard Wall threaded inserts while using a hole size virtually the same as E-Z Coil™ inserts. Like all E-Z LOK™ (Solid Wall) threaded inserts, the Thin Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z LOK™ drive tool.

E-Z LOK™ (Solid Wall) Thin Wall inserts are self-locking. Immediately upon installation, pre-applied LOCTITE™ on the external threads begins to set and the newly installed insert is fastener ready in minutes. At full cure (72 hours), the Loctite™ seals against liquids and gases to pressures of 6,000 psi.

Features

  • Strong: screw machined out of solid steel for greater strength; superior pull out resistance.
  • Thin Wall: all the advantages of the standard E-Z LOK threaded inserts in a smaller overall diameter
  • Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
  • Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
  • Standard size and pitch external threads eliminate need for special taps or installation tools.
  • Install using a screwdriver, bolt and jam nut, or optional E-Z LOK™ drive tool

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Installation:

Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.

  • Simply drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.


E-Z LOK™ (Solid Wall) threaded inserts are self-locking and open immediately upon installation. The pre-applied LOCTITE™ on the external threads sets immediately allowing for the newly installed insert to be fastener ready.

E-Z LOK solid wall threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. When using a bolt and jam nuts for installation, the slotted end of the insert can be either up or down.

Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.

View Installation Instructions

CAD Drawings

CAD Drawings

Specifications

Specifications

E-Z Lok P/N: 313-M6
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Thin Wall
Style: Solid Wall
Material: Steel - Stainless
System of Measurement: Metric
Internal Thread: M6-1.0
External Thread: N/A
Installed Length: 0.38
Drill Size: Q
Tap Size: 3/8-24
Minimum Full Thread Depth: 0.437
Installation Tool P/N: 500-2
