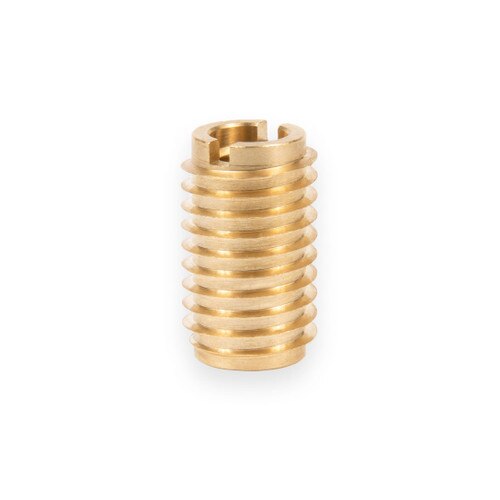

E-Z Knife™ Threaded Insert for Hard Wood - Brass - 5/16-18 - 1.00" Length
SKU: 400-510
Overview
E-Z Knife™ Threaded Insert - Brass - 5/16-18 - 1.00" Length
E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.
E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.
Features
- Superior hard wood holding power
- Sizing variety, inch (coarse/fine) & metric
- Brass or stainless steel options
- Easily installs with a bolt/jam nut or optional drive tool
Applications:
- Cabinetry & Furniture
- Partitions
- Display Cases
- Beer Tap Handles
- Shipping Containers
- Anywhere a fastener will be used in wood
Installation:
E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.Specifications
Specifications
E-Z Lok P/N: | 400-510 |
For Use in: | Hard Wood |
Specific Material Use: | N/A |
Sub-Category: | N/A |
Style: | Knife Thread |
Material: | Brass |
System of Measurement: | Inch |
Internal Thread: | 5/16-18 |
External Thread: | N/A |
Installed Length: | 1 |
Drill Size: | 33/64 |
Tap Size: | N/A |
Minimum Full Thread Depth: | N/A |
Installation Tool P/N: | DT-5 |
