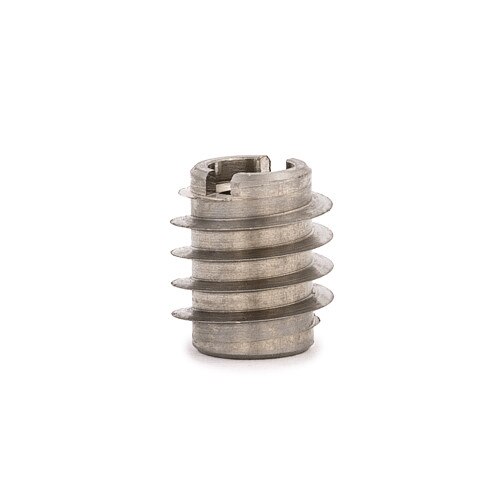

E-Z Knife™ Threaded Insert for Hard Wood - 303 Stainless - 1/4-20

SKU: 400-4-CR
E-Z Lok P/N: 400-4-CR
For Use in: Hard Wood
Specific Material Use: N/A
Sub-Category: N/A
Style: Knife Thread
Material: Brass
System of Measurement: Inch
Internal Thread: 1/4-20
External Thread: N/A
Installed Length: 0.5
Drill Size: 25/64
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: 500-3

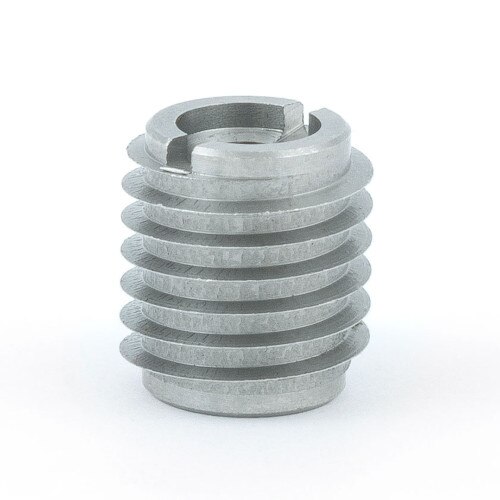

E-Z Knife™ (Knife Thread) Inserts for Hard Wood





E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.



E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.





Features:

  • Superior hard wood holding power
  • Sizing variety, inch (coarse/fine) & metric
  • Brass or stainless steel options
  • Easily installs with a screwdriver, bolt/jam nut, or optional drive tool

Ideal for:

  • Furniture
  • Cabinetry
  • Partitions
  • Shipping Containers
E-Z Lok P/N: 400-4-CR
For Use in: Hard Wood
Specific Material Use: N/A
Sub-Category: N/A
Style: Knife Thread
Material: Brass
System of Measurement: Inch
Internal Thread: 1/4-20
External Thread: N/A
Installed Length: 0.5
Drill Size: 25/64
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: 500-3
