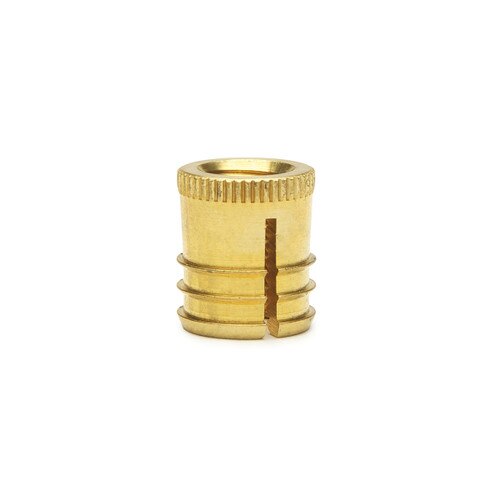

Exact part/packaging not shown. Actual parts and packaging may vary.
E-Z Fin™ Threaded Insert for Soft Wood or Plastic - Triple fin - M8-1.25
SKU: 370-M8-BR
Overview
E-Z Fin™ Threaded Insert for Soft Wood or Plastic - Triple fin - M8-1.25
E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.
Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #4 to 5/16 and M5 to M8.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.
Features
- Easy press-in installation
- Design minimizes splintering and splitting
- Available in 3 lengths for varying material thicknesses
Applications:
- Soft woods: such as pine, composition board, and MDF
- Most Plastics
Knowledge Base
Knowledge Base
Specifications
Specifications
E-Z Lok P/N: | 370-M8-BR |
For Use in: | Soft Wood, Thermoset Plastic, Thermoplastic |
Specific Material Use: | N/A |
Sub-Category: | N/A |
Style: | Finsert |
Material: | Brass |
System of Measurement: | Metric |
Internal Thread: | M8-1.25 |
External Thread: | N/A |
Installed Length: | 14.3 |
Drill Size: | N/A |
Tap Size: | N/A |
Minimum Full Thread Depth: | N/A |
Installation Tool P/N: | N/A |
