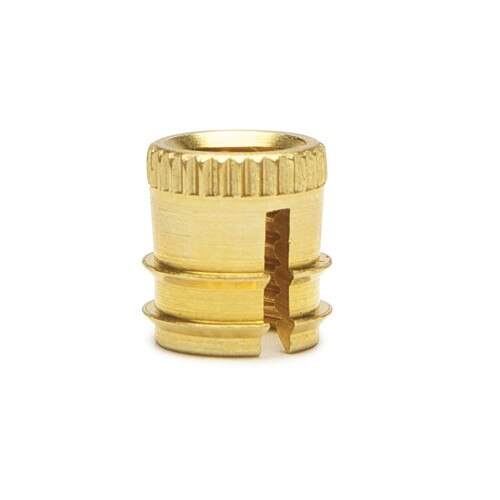

Exact part/packaging not shown. Actual parts and packaging may vary.
E-Z Fin™ Threaded Insert for Soft Wood or Plastic - Double fin - 4-40
SKU: 270-004-BR
Overview
E-Z Fin™ Threaded Insert for Soft Wood or Plastic - Double fin - 4-40
E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.
Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #4 to 5/16 and M5 to M8.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.
Features
- Easy press-in installation
- Design minimizes splintering and splitting
- Available in 3 lengths for varying material thicknesses
Applications:
- Soft woods: such as pine, composition board, and MDF
- Most Plastics
Knowledge Base
Knowledge Base
Specifications
Specifications
E-Z Lok P/N: | 270-004-BR |
For Use in: | Soft Wood, Thermoset Plastic, Thermoplastic |
Specific Material Use: | N/A |
Sub-Category: | N/A |
Style: | Finsert |
Material: | Brass |
System of Measurement: | Inch |
Internal Thread: | 4-40 |
External Thread: | N/A |
Installed Length: | 0.375 |
Drill Size: | #5 |
Tap Size: | N/A |
Minimum Full Thread Depth: | N/A |
Installation Tool P/N: | N/A |
Prop 65
Prop 65
WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
