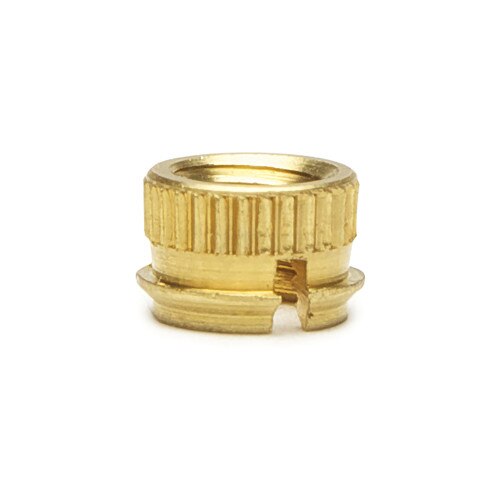

Exact part/packaging not shown. Actual parts and packaging may vary.
E-Z Fin™ Threaded Insert for Soft Wood or Plastic - Single fin - 4-40
SKU: 170-004-BR
Overview
E-Z Fin™ Threaded Insert for Soft Wood or Plastic - Single fin - 4-40
E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.
Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #4 to 5/16 and M5 to M8.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.
Features
- Easy press-in installation
- Design minimizes splintering and splitting
- Available in 3 lengths for varying material thicknesses
Applications:
- Soft woods: such as pine, composition board, and MDF
- Most Plastics
Knowledge Base
Knowledge Base
Specifications
Specifications
| E-Z Lok P/N: | 170-004-BR |
| For Use in: | Soft Wood, Thermoset Plastic, Thermoplastic |
| Specific Material Use: | N/A |
| Sub-Category: | N/A |
| Style: | Finsert |
| Material: | Brass |
| System of Measurement: | Inch |
| Internal Thread: | 4-40 |
| External Thread: | N/A |
| Installed Length: | 0.188 |
| Drill Size: | #5 |
| Tap Size: | N/A |
| Minimum Full Thread Depth: | N/A |
| Installation Tool P/N: | N/A |
