  • E-Z Coil™ Threaded Insert for Metal - M18-2.0 x 1.5D

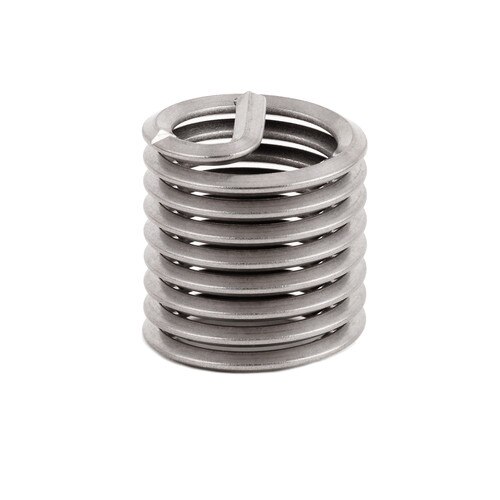

Exact part/packaging not shown. Actual parts and packaging may vary.

E-Z Coil™ Threaded Insert for Metal - M18-2.0 x 1.5D

SKU: 51315

Overview

E-Z Coil™ Threaded Insert for Metal - M18-2.0 x 1.5D

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.

E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.

Features

  • Quickly repair damaged threads in soft metal
  • Protect tapped holes from stripping and wear
  • Made from corrosion resistant 18-8 stainless steel

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Specifications

Specifications

E-Z Lok P/N: 51315
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Standard Coil
Style: Coil
Material: Steel - Stainless
System of Measurement: Metric
Internal Thread: M18-2.0
External Thread: N/A
Installed Length: 27
Drill Size: 18.5
Tap Size: M18-2.0 STI
Minimum Full Thread Depth: 26
Installation Tool P/N: M1020

CAD Drawings

CAD Drawings

Knowledge Base

Prop 65

Prop 65

SHOPPERS IN CALIFORNIA, PLEASE NOTE:

WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
