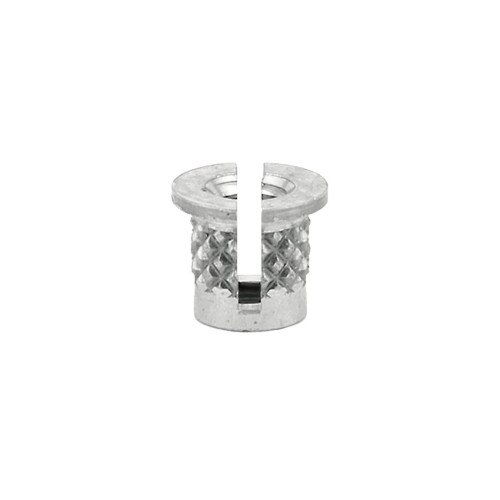

E-Z Press™ Threaded Insert for Plastic - Reverse Slot - Stainless - 2-56

SKU: 260-002-RS-CR

Overview

E-Z Press™ Threaded Insert for Plastic - Reverse Slot - Stainless - 2-56

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.

Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.

Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.

Features

  • Install cold with simple press-in installation
  • Stainless steel design for greater strength and corrosion resistance.
  • Cut reject waste caused by misaligned and faulty inserts
  • Eliminate the need to “chase” threads after molding
  • Install properly without a precise hole depth

Applications:

  • Post-molding installation in either thermoset plastics or thermoplastics

Knowledge Base

Specifications

Specifications

E-Z Lok P/N: 260-002-RS-CR
For Use in: Thermoset Plastic, Thermoplastic
Specific Material Use: N/A
Sub-Category: N/A
Style: Press-In
Material: Steel - Stainless
System of Measurement: Inch
Internal Thread: 2-56
External Thread: N/A
Installed Length: 0.156
Drill Size: 1/8
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A
