E-Z Press™ Threaded Insert for Plastic - Flush - Brass - M6-1.0 - .438" long
Overview
E-Z Press™ Threaded Insert for Plastic - Flush - Brass - M6-1.0 - .438" long

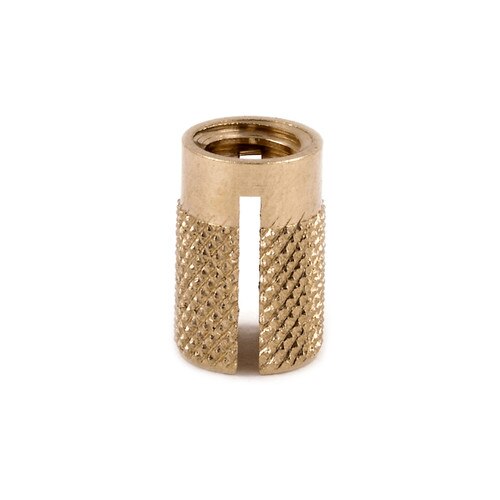

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.
Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.
Features
- Install cold with simple press-in installation
- Reduce the cost of moldings
- Cut reject waste caused by misaligned and faulty inserts
- Eliminate the need to “chase” threads after molding
- Install properly without a precise hole depth
Applications:
- Post-molding installation in either thermoset plastics or thermoplastics
Knowledge Base
Knowledge Base
Specifications
Specifications
E-Z Lok P/N: | 240-M6-BR.438 |
For Use in: | Thermoset Plastic, Thermoplastic |
Specific Material Use: | N/A |
Sub-Category: | N/A |
Style: | Press-In |
Material: | Brass |
System of Measurement: | Metric |
Internal Thread: | M6-1.0 |
External Thread: | N/A |
Installed Length: | 11.13 |
Drill Size: | N/A |
Tap Size: | N/A |
Minimum Full Thread Depth: | N/A |
Installation Tool P/N: | N/A |
